What is the unit of hydrograph?

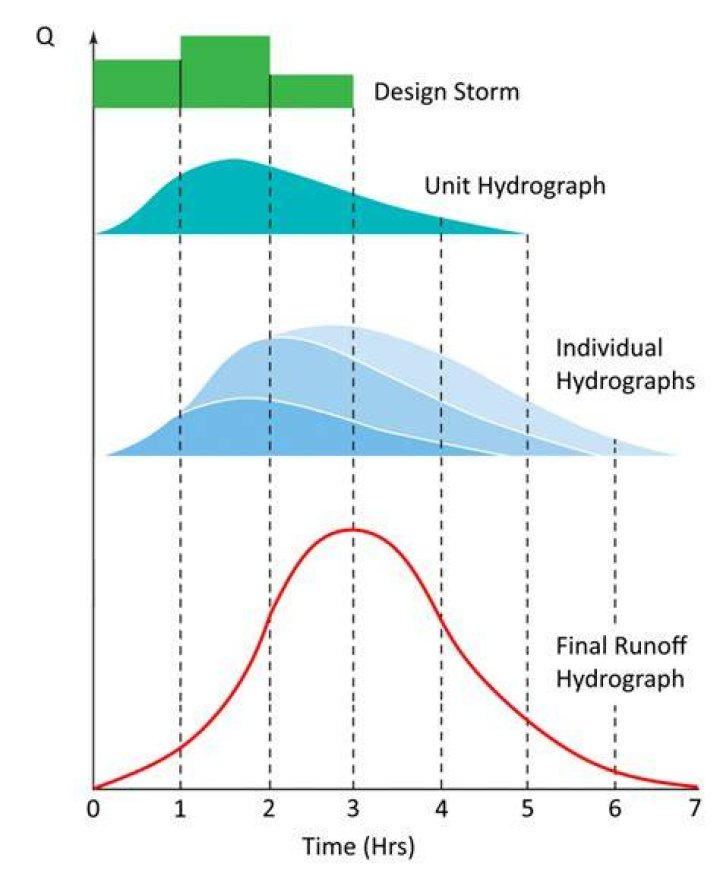

Unit Hydrograph. Unit hydrograph is a direct runoff hydrograph resulting from one unit (one inch or one cm) of constant intensity uniform rainfall occurring over the entire watershed.

Hereof, how do you solve a unit hydrograph?

a) Determine the volume of losses, V_Losses which is equal to the difference between the volume of gross rainfall, V_GRH, and the volume of the direct runoff hydrograph, V_DRH . As observed in the table, the duration of the effective rainfall hyetograph is 2 hours.

Time (h)	1-H Unit Hydrograph (m³/s/cm)
10	0.00

Additionally, what is Baseflow in hydrograph? The baseflow of the river represents the normal day to day discharge of the river and is the consequence of groundwater seeping into the river channel. The rising limb of the hydrograph represents the rapid increase in resulting from rainfall causing surface runoff and then later throughflow.

In this way, what are the uses of unit hydrograph?

The role of unit hydrograph in hydrology is to provide an estimate of direct runoff hydrograph resulting from given excess rainfall hyetograph. In order to use unit hydrograph as a tool for predicting direct runoff hydrograph, we first need to derive a unit hydrograph for a given watershed.

What is runoff hydrograph?

Meaning of Runoff Hydrograph: Hydrograph is a graphical or tabular presentation of instantaneous runoff/discharge rate against time. Sometimes, it is also known as storm hydrograph, flood hydrograph or simply hydrograph. A hydrograph presents the total runoff (direct + base flow) occurring at a given time.

What is the unit of runoff?

Unit of runoff in M.K.S. system is. A. cubic metre/sec. metre/sec. cubic metre.

What is total runoff?

The total runoff is equal to the total precipitation less the losses caused by evapotranspiration (loss to the atmosphere from soil surfaces and plant leaves), storage (as in temporary ponds), and other such abstractions.

What is excess rainfall?

rainfall excess. The volume of rainfall available for direct surface runoff. It is equal to the total amount of rainfall minus all abstractions including interception, depression storage, and infiltration.

What is rainfall Hyetograph?

A hyetograph is a graphical representation of the distribution of rainfall intensity over time. The maximum intensity may not be reached as uniformly as shown in the SCS hyetographs.

What is hydrograph analysis?

Special graphs that show changes in a river's discharge over a period of time, usually in relation to a rainfall event. OR. A hydrograph is a graph showing the rate of flow (discharge) versus time past a specific point in a river, or other channel or conduit carrying flow.

What is S curve in hydrology?

S-curve or S-Hydrograph ? A 'S' hydrograph is nothing but a hydrograph generated by a continuous effective rainfall occurring at an uniform rate for an indefinite period. ? It is a curve which rises continuously in the form or shape of the letter S, till a constant discharge value i.e. equilibrium is reached.

Why is a hydrograph important?

The hydrograph is important for feeding in data on the potenital magnitude and frequency of floods. They are therefore a vital means to managing rivers and drainage basins. In the hydrograph above we can see that discharge increases rapidly due to a period of extended rainfall.

What is a flow duration curve?

The flow duration curve is a plot that shows the percentage of time that flow in a stream is likely to equal or exceed some specified value of interest. The basic time unit used in preparing a flow-duration curve will greatly affect its appearance.

What are the limitations of unit hydrograph?

LIMITATIONS OF A UNIT HYDROGRAPH: i)Unit hydrograph method is not applicable to areas with a major portion of storm precipitation being on form of snow. ii)Principle of time in-variance sometimes does not hold as the basin characteristics will chabge with man made adjustments as well as seasons.

What is Hyetograph and hydrograph?

1. A hydrograph is graphically plot of discharge of a natural system for river versus time. A hyetograph is a plot of intensity of rainfall against the time interval it is usually represented buy a bar chart.

What factors affect the shape of a hydrograph?

Physical factors affecting flood hydrograph dynamics

Shape. A circular shaped drainage basin leads to rapid drainage whereas a long drainage basin will take time for the water to reach the river.
Topography & relief.
Heavy Storms.
Lengthy rainfall.
Snowfall.
Vegetation.
Rock type.

What is direct runoff?

direct runoff. Water that flows over the ground surface directly into streams, rivers, or lakes. Also called storm runoff.

What is hydrograph in hydrology?

A hydrograph is a graph showing the rate of flow (discharge) versus time past a specific point in a river, channel, or conduit carrying flow. The rate of flow is typically expressed in cubic meters or cubic feet per second (cms or cfs).

What does Baseflow mean?

Baseflow (also called drought flow, groundwater recession flow, low flow, low-water flow, low-water discharge and sustained or fair-weather runoff) is the portion of streamflow delayed shallow subsurface flow". It should not be confused with groundwater flow. Fair weather flow is called as Base flow.

What is Baseflow recession?

baseflow recession curve. A recession curve of streamflow so adjusted that the slope of the curve represents the runoff depletion rate of the groundwater. A curve is formed by the observed hydrograph during prolonged periods of no precipitation.

What affects stream flow?

Flow velocity is influenced by the slope of the surrounding terrain, the depth of the stream, the width of the stream, and the roughness of the substrate or stream bottom. The substrate of the stream bottom also affects the flow velocity since water moves faster over a smooth surface than a rough surface.

What affects lag time?

If a drainage basin has a significant amount of vegetation this will have a significant affect on a storm hydrograph. Vegetation intercepts precipitation and slows the movement of water into river channels. This increases lag time. The amount precipitation can have an affect on the storm hydrograph.

How groundwater is recharged?

Groundwater is recharged naturally by rain and snow melt and to a smaller extent by surface water (rivers and lakes). Recharge can help move excess salts that accumulate in the root zone to deeper soil layers, or into the groundwater system. Tree roots increase water saturation into groundwater reducing water runoff.

What is bankfull discharge?

Bankfull geometry is defined in terms of river width and average depth at bankfull discharge. Bankfull discharge is the flow discharge when the river is just about to spill onto its floodplain.
