What is jumper in telecom?
Andrew White updates
A jump wire (also known as jumper wire, or jumper) is an electrical wire, or group of them in a cable, with a connector or pin at each end (or sometimes without them – simply "tinned"), which is normally used to interconnect the components of a breadboard or other prototype or test circuit, internally or with other
.
Consequently, what is the purpose of a jumper wire?
The term "jumper wire" simply refers to a conducting wire that establishes an electrical connection between two points in a circuit. You can use jumper wires to modify a circuit or to diagnose problems in a circuit.

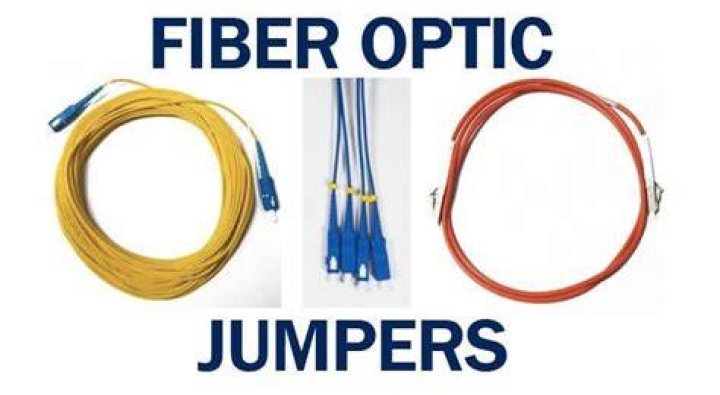

Furthermore, what is a fiber optic jumper? Also known as fiber patch cord, fiber optic jumper is a length of fiber cable with connectors at both ends which can be LC, SC, MTRJ or ST. Fiber optic jumpers or cables can be multimode or single mode and are used to connect devices or hardware to the cabling system.
Similarly one may ask, what is jumper wire made of?
Jumper wires are simply wires that have connector pins at each end, allowing them to be used to connect two points to each other without soldering. Jumper wires are typically used with breadboards and other prototyping tools in order to make it easy to change a circuit as needed.
What is Arduino jumper wires?
Jumper Wires. Jumper wires are used for making connections between items on your breadboard and your Arduino's header pins. Buy jumper wires from Amazon, SparkFun, Adafruit, or Newark.
Related Question Answers
What gauge are jumper wires?
Most important thing to remember is you must use solid-core wire, ideally 22 American Wire Gauge (AWG).How much current can jumper wires handle?
The current and voltage rating of commonly used jumper wires for an arduino application will not be more than 2 A and 250 V. The current and voltage ratings of the jumper wires will be purely based on the copper or aluminium content (AWG) present in the wire .What do you mean by jumper?
A jumper is a sleeveless dress that is worn over a blouse or sweater. If you refer to a person or a horse as a particular kind of jumper, you are describing how good they are at jumping or the way that they jump.What does jumping a wire mean?
A jump wire (also known as jumper wire, or jumper) is an electrical wire, or group of them in a cable, with a connector or pin at each end (or sometimes without them – simply "tinned"), which is normally used to interconnect the components of a breadboard or other prototype or test circuit, internally or with otherHow do you use breadboard jumper wires?
To do that, unscrew the post until the hole going through it is exposed. Slide the stripped end of your jumper wire through the hole, and screw the post back down until the wire is firmly connected. Typically, you only need to connect a power and ground wire from the posts to the breadboard.What type of wire is used for jumper cables?
Higher end jumper cables (up to 25 feet long and 1- or 2-gauge copper or copper-clad aluminum wire), costing $25 to $75 and more, are best suited for owners of larger vehicles, such as trucks, commercial vans, RVs, and SUVs. The clamps on these cables will fit both top- and side-post batteries with ease.What is the difference between RH and RC on a thermostat?
If the air conditioning thermostat has one transformer to power both the heating and cooling system, then the wire from the transformer goes directly to the RC terminal and is called the RC wire. Effectively there isn't a second RH wire, although there is an RH terminal. This wire is also known as the RH wire.How do you make a female jumper wire for a male?
DIY Male to Female Jumper Wire- Step 1: Tools Needed. I used a wire stripper, wire cutters, pliers, shrink wrap, and a lighter.
- Step 2: Making the Female Side. I took a straight pin and wrapped the solid core wire around it about eight times to get the depth that I needed.
- Step 3: Shrink Wrap.
- Step 4: Moment of Truth.
- Step 5: Connect and Test.
What is a jumper in England?
In British English, the term jumper describes what is called a sweater in American English. Also, in more formal British usage, a distinction is made between a pinafore dress and a pinafore. The latter, though a related garment, has an open back and is worn as an apron.How does a breadboard work?
A breadboard is a solderless device for temporary prototype with electronics and test circuit designs. Most electronic components in electronic circuits can be interconnected by inserting their leads or terminals into the holes and then making connections through wires where appropriate.What is the point of a breadboard?
The purpose of the breadboard is to make quick electrical connections between components- like resistors, LEDs, capacitors, etc- so that you can test your circuit before permanently soldering it together.What is fused jumper wire?
JUMPER WIRESBypassing resistances, in effect, creates a short circuit. This is commonly referred to as a "fused jumper". By inserting an in-line fuse holder between a set of test leads, a fused jumper wire can be used for bypassing open circuits.Can you solder jumper wires?
Jumper wires soldered into plated through holes must be discernible on the opposite side. Just like a through hole component lead, you should be able to see the outline of the wire in the solder connection. Jumper wires soldered to lifted or clipped component leads should be insulated to prevent shorting.What is Jumper work?
In a computer, a jumper is a pair of prongs that are electrical contact points set into the computer motherboard or an adapter card . When you set a jumper, you place a plug on the prongs that completes a contact. In effect, the jumper acts as a switch by closing (or opening) an electrical circuit.What is a jumper wire on a thermostat?
A thermostat jumper wire is a short piece of wire connecting two terminals on the thermostat base. A jumper wire does not originate from behind the wall, but is unique to each thermostat. Below is a table of common jumper connections you may see on your old thermostat base.What color are fiber jumpers?
| Fiber Type | Color Code | |
|---|---|---|
| Multimode (62.5/125) (OM1) | Orange | Slate |
| Multimode (100/140) | Orange | Green |
| Single-mode (OS1, OS1a, OS2) | Yellow | Yellow |
| Polarization Maintaining Single-mode | Blue | Undefined |
