With both legs of a U-tube manometer open to the atmosphere or subjected to the same pressure, the liquid maintains the same level in each leg, establishing a zero reference. Figure 2. With a greater pressure applied to the left side of a U-tube manometer, the liquid lowers in the left leg and rises in the right leg..
People also ask, how does Au tube manometer work?

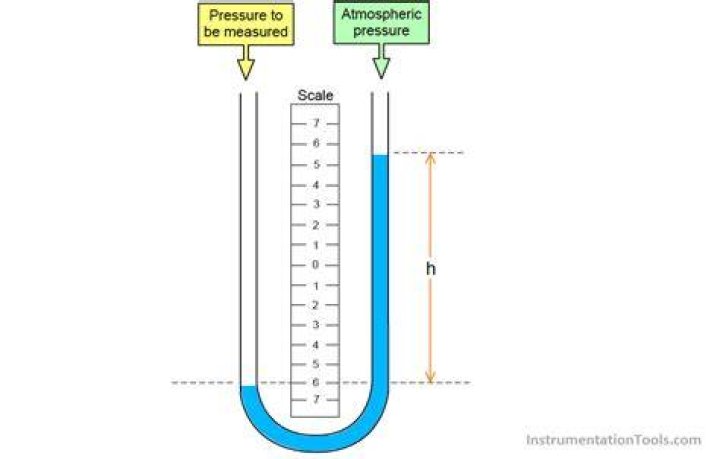

In its simplest form the manometer is a U-tube about half filled with liquid. When positive pressure is applied to one leg, the liquid is forced down in that leg and up in the other. The difference in height, "h," which is the sum of the readings above and below zero, indicates the pressure.
Also Know, how is a manometer reading calculated? The formula for calculating the pressure is pd = ρ g h, where pd = the pressure difference, ρ = the density of the liquid in the manometer; mercury equals 13,590 kg/m3; water equals 1,000 kg/m3, g = acceleration of gravity, 9.81 m/s2 and h = the height of the liquid in meters.
Also know, how do you set up AU tube manometer?
Mix water in a beaker with sufficient red food coloring to make the water red. Pour about 100 ml of the water into one of the open ends of the manometer. Position a ruler vertically on one side of the manometer. Adjust the ruler's position so that its zero point is level with the surface of the water in the manometer.
What is simple manometer?
A simple manometer consists of a glass tube having one of its ends connected to a point where pressure is to be measured and other end remains open to atmosphere. Common types of simple manometers are: (1) Piezometer.
Related Question Answers
What is the unit of manometer?
The resulting pressure is the difference between forces exerted per unit of surface area of the liquid columns, with pounds per square inch (psi) or newtons per square meter (pascals) as the units. The manometer is so often used to measure pressure that the difference in column heights is also a common unit.What is a good manometer reading?
The readout on the manometer should be between 0.5in – 1.75in. In most cases these are acceptable levels indicating, your system is operating correct. When your Radon system is shut off the fluid should rest at zero if it does not then your manometer is low on fluid.What is the purpose of a manometer?
A manometer is a scientific instrument used to measure gas pressures. Open manometers measure gas pressure relative to atmospheric pressure. A mercury or oil manometer measures gas pressure as the height of a fluid column of mercury or oil that the gas sample supports.What is manometer fluid?
The Manometer fluid or Pressure Gauge fluid is a combination of distilled water and additives to reduce the surface tension; is an accessory for Liquid Column Manometers individually sold for refill needs. There are two variations: Manometer fluid density 0.78.What is an inclined manometer?
An inclined manometer is a slightly curved tube with a liquid inside, typically a form of oil mixture. The amount of liquid displacement is viewed and measured through the tube's graduations, producing a pressure value.What variables determine the height of the liquid in a manometer?
The height of a column of liquid in a manometer depends on: Option A: the pressure difference between the top and bottom, the acceleration of gravity, and the liquid specific volume.What is well type manometer?
Well Type Manometer. The Groth Model 8170 Well-Type Manometer is a direct reading, single column type pressure gauge providing accurate pressure readings, positive, negative, or differential. It is used to indicate gas pressure in lines from the digester and those leading to utilities and waste gas burners.How is a manometer measured?
Manometer PressureManometers measure a pressure difference by balancing the weight of a fluid column between the two pressures of interest. Large pressure differences are measured with heavy fluids, such as mercury (e.g. 760 mm Hg = 1 atmosphere).What is the difference between a manometer and a barometer?
A barometer measures the pressure of the air around you. A manometer is anything that measures pressure. Therefore, all barometers are manometers. If you are measuring the difference in air pressure between two parts of a system, that would be referred to as a manometer instead of as a barometer.What is the principle of manometer?
A manometer works on the principle of hydrostatic equilibrium and is used for measuring the pressure (static pressure) exerted by a still liquid or gas. In its simplest form, a manometer is a U-shaped tube consisting of an incompressible fluid like water or mercury. It is inexpensive and does not need calibration.What is manometer used to measure?
Instruments used to measure and display pressure in an integral unit are called pressure meters or pressure gauges or vacuum gauges. A manometer is a good example, as it uses the surface area and weight of a column of liquid to both measure and indicate pressure.How do you make a simple manometer?
Mix water in a beaker with sufficient red food coloring to make the water red. Pour about 100 ml of the water into one of the open ends of the manometer. Position a ruler vertically on one side of the manometer. Adjust the ruler's position so that its zero point is level with the surface of the water in the manometer.What is manometer and its types?
A Manometer by definition is a device used for measuring the pressure of a fluid by balancing it against a pre-determined column of fluid. The most common type of manometer which almost all us might have seen is sphygmomanometer. It is the device which doctors use to measure your blood pressure.What is the pressure of a gas trapped in a manometer?
An open-ended mercury manometer is used to measure the pressure exerted by a trapped gas as shown in the figure. Atmospheric pressure is 749 mmHg.Why mercury is used in manometer?
Mercury has high density and low length is essential for pressure measuring. Its high density helps to make small manometers. It does not evaporate like water would, and its lower freezing point means it will not freeze up at 0 deg C. Simply it has compactness, visibility and stability.Does the diameter of a manometer matter?
Manometer height difference does not depend on tube diameter (except, of course, if the diameter is very small, and surface tension effects are significant). Manometer height difference does not depend on tube shape (except, of course, if the tube is of very small diameter, and surface tension effects are significant).What is sensitivity of manometer?
The sensitivity of the well manometer can be adjusted by changing the angle α and can be some 30 times that of the U-tube. This type is also often called a micromanometer due to its ability to measure very small pressure differences. Several other types of micromanometers and fluid manometers are also available.How do you measure gas pressure?
A simple device to measure gas pressure is a U-tube manometer. It usually contains water or mercury in a U-shaped tube. One end of the U tube is exposed to the unknown pressure, and the other end is open to the atmosphere.How do you read a manometer with water?
A manometer is read by adding the difference between both sides of the water column. In other words, if the water column moves down 1” on the pressure side and up 1” on the other side, that would equal 2” of water. The reading of a manometer that equals 2” of water column is . 07226 PSI.
