How do you hook up a solenoid on a lawn mower?

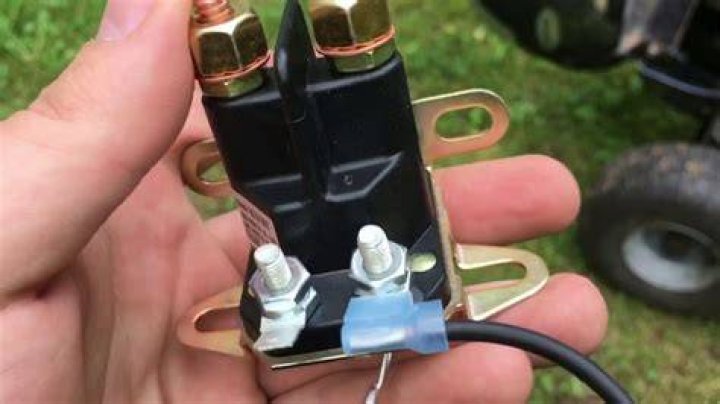

Position the new starter solenoid on the frame and install the mounting bolt. Connect the wires to the coil spades. Install the wires on the terminal posts, connecting them with the mounting nuts. Position the battery box in the opening and engage the retaining tabs.

Similarly, how does a solenoid work on a lawn mower?

The starter solenoid is a small magnetic device located inside the starter motor. When you turn the ignition key on in the "start" position, the battery sends a small electrical charge to the starter solenoid. The solenoid closes a switch that results in a larger amount of current being sent to the starter motor.

Additionally, does it matter which way a solenoid is wired? So your probably safe. The wires going to the motor do matter. if wrong motor will turn backwards. There are two sets of terminals, a smaller set to activate the solenoid, and a heavier set for the motor.

Likewise, how do you check a solenoid on a riding lawn mower?

First, turn the ignition key to the “On” position. Look for the large terminal posts on the solenoid where the thick red wires connect to the solenoid. Touch the metal shaft of a screwdriver to both of the large terminals at the same time. If the engine turns over and starts, the solenoid is bad and should be replaced.

How do I know if my lawnmower starter is bad?

A bad starter can manifest itself in a cranking noise without engine turnover, a clicking when the ignition button is pressed, or a mower that simply does not respond to attempts to start. An indication of a bad starter motor is the absence of other electrical problems that can be more easily tested.

Why does my mower click when I try to start it?

If the riding mower makes a heavy clicking or a rapid clattering sound when the key is turned to the start position, there is a problem with the battery or a part of the starting circuit. The clicking noise comes from a part called the starter solenoid. Low battery voltage - Battery needs charging or replacement.

Should a solenoid have continuity?

Yes, with the solenoid disconnected, you should have continuity between the small, COIL terminals. The small terminals are connected to the coil which activates (connects) the large, PRIMARY terminals of the solenoid.

How do you bypass a solenoid?

How to Bypass the Starter Solenoid

Locate the starter motor under the vehicle.
Locate the two metal contacts on the back of the starter solenoid.
Place the metal blade of an insulated screwdriver across both metal contacts.
Get a friend to help you by turning on the ignition with the key.
Listen to the starter motor.

How does a solenoid switch work?

Solenoid is the generic term for a coil of wire used as an electromagnet. It also refers to any device that converts electrical energy to mechanical energy using a solenoid. The device creates a magnetic field from electric current and uses the magnetic field to create linear motion.

Can a bad solenoid drain your battery?

A bad starter won't drain the battery itself, but attempting to start the motor with a bad starter can. If the engine is trying to turn over but fails to and you can hear it getting slower, that is a result of draining the battery. How do I test my starter solenoid?

How do you start a lawn mower with a screwdriver?

Using a Screwdriver to Start the Mower

Use the screwdriver as the bridge mechanism instead of jumper cables. If the space between the two electrical posts to engage, the solenoid and the starter, sit very close to one another using the screwdriver as a bridge.
Use a flat head screwdriver in lieu of the key.

How do you test a lawn tractor starter?

Connect one end of a jumper wire from the battery's positive terminal, and touch the small lug on the engine starter solenoid that is marked S with the other end to test the starter ignition switch. If the engine starter motor turns over or runs then the starter ignition switch is faulty and requires replacement.

How do you test a starter solenoid on a Briggs and Stratton?

How to Test a Solenoid on a Briggs & Stratton Engine

Place the engine on a hard, flat surface. To locate the solenoid on the engine, follow the positive (red) wire coming from the battery; it will lead into the solenoid.
Remove the spark plug wire from the spark plug.
Keep the negative lead from the voltmeter connected to the negative battery post.

What would cause a riding lawn mower not to start?

The most common reason for a riding mower cranking over but not starting, is bad gas, but other possible reasons include:

Gas Valve Off.
No Gas.
Choke Fault.
Plug Wet / Faulty.
Plug Wire Off.
Bad Battery.
Air filter Blocked.
Gummed / Faulty Carburettor.

What happens if a solenoid is wired backwards?

Most starters change both fields when reversing the wires causing the motor to spin ALWAYS in the same direction. Once you connect the positive wire from the battery to the negative of the starter which is difficult to do - You make a short circuit and better hope it ends well since there is a large current involved.

How is a solenoid wired?

There is another type of relay called a solenoid that basically works on the same principle. The solenoid electromagnet consists of wire wrapped around a tube containing an iron cylinder called a "plunger". When electricity is supplied to the wire coil, the "plunger" moves through the tube and activates a switch.

What are the two wires on a starter?

A typical starter solenoid has one small connector for the starter control wire (the white connector in the photo) and two large terminals: one for the positive battery cable and the other for the thick wire that powers the starter motor itself (see the diagram below).
