How do you adjust a Yamaha carburetor?

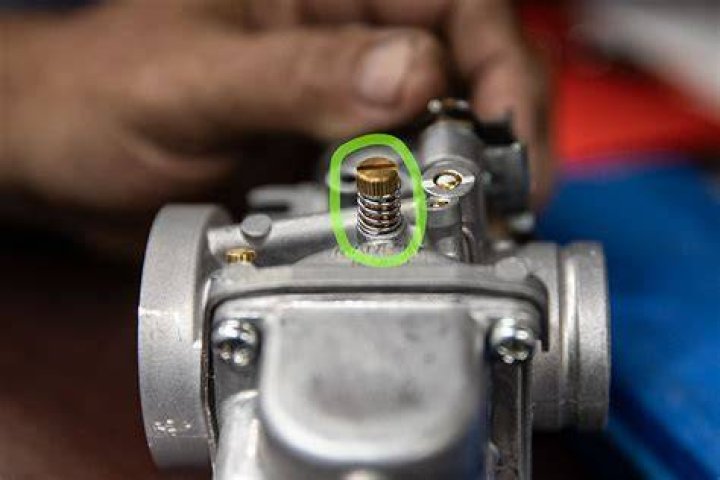

Locate the idle mixture screw and turn it clockwise until the needle lightly touches the seat. Then, turn the screw counterclockwise 1-1/2 turns. If your carburetor has a main jet adjustment screw at the base of the float bowl, turn the screw clockwise until you feel it just touch the seat inside the emulsion tube.

Considering this, how do you adjust a carburetor?

Carb Quick Guide

Verify carburetor is set to stock settings:
Start bike, bring to operating temperature.
Set idle speed adjusting screw, clockwise to increase rpm, counter-clockwise to decrease rpm.
Adjust idle mixture by turning idle mixture screw slowly clockwise until the engine runs poorly.

Furthermore, how do you lean out a carburetor? The first thing to do is not set up the idle speed, but to set the Idle mixture screw to lean best idle setting. First, turn in the mixture screw until the engine dies or runs worse, then back out the screw (recommend turning ¼ to ½ turn at a time). The engine should pick up speed and begin to smooth out.

Subsequently, question is, how do you adjust the air fuel mixture in a carb?

Method 1 Adjusting the Air and Fuel Mixture

Locate the air filter and remove it.
Find the adjustment screws on the front of the carburetor.
Start the engine and let it warm to normal operating temperature.
Adjust both screws equally and find the right mixture.
Replace the air filter assembly.

Why does my boat motor shake?

Another vibration can come from a bent or worn shaft. That shaft needs a fair run from that engine to the prop, and one of the things that will cause vibration is a misalignment of the engine. If you take the couplings loose, you may be able to see that they don't line up.

How do you service a 2 stroke outboard motor?

How to service a 2-stroke outboard engine

Do it yourself! This step-by-step guide takes you through a service of a small 2-stroke outboard.
1: Drain the old fuel.
Check the spark plug.
Check the recoil starter.
Remove, strip and clean the carburettor.
The lower leg.
Remove the gearbox to check the water pump.
On smaller engines with only one gear…

How do you adjust a carburetor on an outboard motor?

How to Adjust Carbs on an Outboard Motor

Submerge the lower end unit into a larger rubber container filled with water.
Unclasp the top engine cowl.
Place a small engine tachometer clip lead around the number one cylinder spark plug.
Start the engine and place the shift selector in forward gear.
Locate the idle speed stop screw on the carburetor linkage.

What does the pilot screw do?

Pilot Screw Adjustment. Carburetors control the amount of air and fuel entering the engine to provide the correct mixture for combustion. To do this over a wide operating range, multiple fuel circuits are employed. This leaves the pilot jet size and the pilot screw for the idle and low throttle conditions.

How do you adjust a carburetor on a boat?

The idle adjustment is on the underside of an outboard carburetor. Use a small adjustable wrench or screwdriver and rotate the idle adjustment 1/4 turn clockwise until the engine idle slows. Rotate the valve counterclockwise in 1/8-turn increments until the engine idles smoothly.

How do I know if my carburetor is rich or lean?

When an engine runs “rich,” it's the exact opposite of running lean, meaning there's excess fuel and not enough air. When this happens, black smoke comes from the exhaust. It's flooded. If there is dirt or debris in the fuel bowl, it can block the needle valve and prevent it from closing.

How much does it cost to tune a carburetor?

Depending on the extent of service that needs to be performed, this type of service typically costs around $200 to $300. If your carburetor needs to be replaced, it may run you between $500 and $800 total.

What are the symptoms of a bad carburetor?

Symptoms of a Bad or Failing Carburetor

Reduced engine performance. One of the first symptoms commonly associated with a bad or failing carburetor is a reduced engine performance.
Black smoke from exhaust. Another symptom commonly associated with a problematic carburetor is black smoke coming from the exhaust.
Backfiring or overheating.
Hard starting.

What happens if float level is too high?

Symptoms of Incorrect Float HeightsIn an extreme case, if the floats are set too high, fuel will overflow via drillings inside the carb body. If the fuel height is too low, the engine will display a lean running condition, where the engine typically hesitates before accelerating or surges as the throttle is opened.

What RPM should my car idle at?

For a passenger car engine, idle speed is customarily between 600 and 1000 rpm. For medium and heavy duty trucks, it is approximately 600 rpm. For many single-cylinder motorcycle engines, idle speed is set between 1200 and 1500 rpm. Two-cylinder motorcycle engines are often set around 1000 rpm.

What causes a carb to run rich?

A power valve that is too small may not increase fuel flow enough under load, causing the A/F to go lean. A low fuel level can make the A/F ratio run lean, while a fuel level that is too high can make the carburetor run rich or even flood the engine with fuel.

Where is the air fuel mixture screw?

The basic idea of adjusting the CVK carb is to set the air/fuel mixture screw to provide the highest idle setting possible. Most CVK carbs have the air/fuel mixture screw on the intake manifold side of the carburetor (toward the engine, away from the air filter).

How does air fuel mixture work?

When the air-fuel ratio is higher than the stoichiometric ratio, the air-fuel mixture is called lean. When the air-fuel ratio is lower than the stoichiometric ratio, the air-fuel mixture is called rich.

Air-fuel ratio, lambda and engine performance.

Fuel	Chemical formula	AFR
Diesel	C₁₂H₂₃	14.5:1
Gasoline	C₈H₁₈	14.7:1
Propane	C₃H₈	15.67:1
Methane	CH₄	17.19:1

What does the air fuel mixture screw do?

Once the air fuel mixture screws have been properly adjusted, and the engine runs smoothly both at idle, and when revved, it is time to locate the idle mixture screw. The idle mixture screw controls the air fuel mixture at idle speed, and often is located near the throttle plate.

What does the L and H mean on a chainsaw?

"On every saw the "h" means that's the "high" side adjustment. It regulates the fuel/air mixture that is being passed into the motor during high rpm's. The "L" means that's the "low" side adjustment. It regulates the fuel/air mixture that is being passed in the motor around the low rpm's"

How do I adjust my idle RPM?

Set idle speed adjusting screw, clockwise to increase rpm, counter-clockwise to decrease rpm. Idle rpm range should be 950 to 1050 rpms. Adjust idle mixture by turning idle mixture screw slowly clockwise until the engine runs poorly.

How do you vacuum a carburetor gauge?

If the vacuum reading increases—say, from 14 inches to 14-½ inches—move around to the other side of the carburetor and turn that mixture screw in ½-turn as well. Again, note the vacuum gauge reading; if the gauge continues to climb, then adjust each idle-mixture screw in another ½-turn.

What does air fuel mixture screw do?

What is the actual work of an air fuel mixture screw in carburetors? The screw is used to regulate the flow of fuel when the engine is at idle speed. As the throttle body is closed, the fuel cannot get into the mixing chamber.

Can bad spark plugs cause car to run rich?

A fouled or bad spark plug is a plug that has become covered with a substance like oil, fuel or carbon or one that is blistered from running too hot. Driving with fouled or bad spark plugs can cause a host of problems for your engine. Symptoms of bad spark plugs can include: Reduced gas mileage.

What does the pilot screw do on a carburetor?

Pilot Screw Adjustment. Carburetors control the amount of air and fuel entering the engine to provide the correct mixture for combustion. As the throttle is opened the carburetor transitions to the needle jet and jet needle circuit for mid range responsibilities, and the main jet for top end fueling.
