Roof PartsVerge: the edge of a roof which runs from eaves to ridge at a gable. Gable: The upper part of a side wall (or flank wall), usually triangular in shape, that comes to a point at the ridge of a sloping roof..
Similarly one may ask, what are the parts of a roof called?

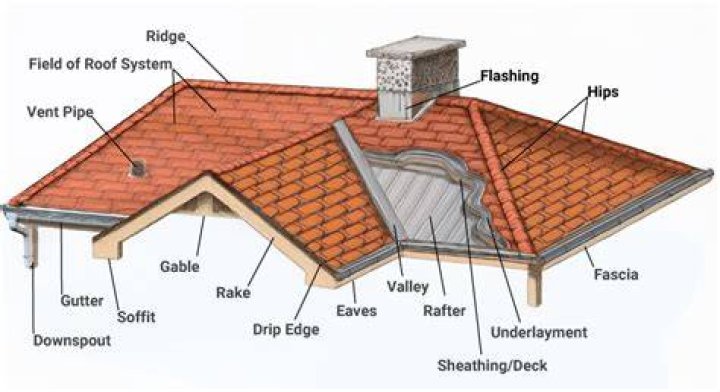

Parts of a roof
- Decking (or sheathing) Usually made from 1⁄2-inch plywood, the decking closes and reinforces the roof structure and provides a nailbed for the shingles.
- Roof edge (or eaves edge) All the boards running along the edge of the roof or eaves.
- Attic.
- Saddle.
- Ridge.
- Valley.
- Underlay membrane.
- Eaves membrane.
what is a side gabled roof? Side Gable: A side gable is a basic pitched roof. It has two equal panels or sides pitched at an angle. Both sides of the gable meet at the ridge in the middle of a building. The triangle section can be left open for an open gable roof, or it can be enclosed for a boxed gable roof.
Similarly, you may ask, what is the edge of a roof called?
The eaves are the edges of the roof which overhang the face of a wall and, normally, project beyond the side of a building. The eaves form an overhang to throw water clear of the walls and may be highly decorated as part of an architectural style, such as the Chinese dougong bracket systems.
What does a roof consist of?
Roof covering: shingles, tile, slate or metal and underlayment that protect the sheathing from weather. Sheathing: boards or sheet material that are fastened to roof rafters to cover a house or building. Roof structure: rafters and trusses constructed to support the sheathing.
Related Question Answers
What part of the roof is the rake?
Rake. The rake of the roof is the exposed outer portion of a gable roof that extends from the eave to the ridge. Drip edge is also installed along the rake.What is roof coping?
Coping: the covering piece on top of a wall which is exposed to the weather, usually made of metal, masonry, or stone. It is preferably sloped to shed water back onto the roof. Cross Ventilation: the effect that is provided when air moves through a roof cavity between the vents.Is roofing felt waterproof?
Roofing felt (similar to tar paper) is the base material used to make roof shingles and roll roofing. Used for decades as waterproof coverings in residential and commercial roofs, these bitumen compositional membranes incorporate two layers.What is a gable wall?
A gable is the generally triangular portion of a wall between the edges of intersecting roof pitches. The shape of the gable and how it is detailed depends on the structural system used, which reflects climate, material availability, and aesthetic concerns.What are the parts of a roof truss?
The Basic Components of a Roof Truss - Apex – Highest point where the sloping top chords meet.
- Bearing – Structural support of trusses (usually walls) normally with a timber wall plate.
- Bottom Chords (BC) – the lowest longitudinal member of a truss.
- Cantilever – part of structural member that extends beyond its support.
What is a roof beam called?
A collar beam or collar is a horizontal member between two rafters and is very common in domestic roof construction. Often a collar is structural but they may be used simply to frame a ceiling. A collar beam is often called a collar tie but this is rarely correct.How many layers does a roof have?
Most building codes allow two layers of organic or fiberglass asphalt shingles on roofs with a 4/12 pitch or less, and three layers on steeper roofs. If the structure can support the added weight, a typical 20-square (2,000-square-foot) reroof will cost at least $1,000 less than a tear-off job.What is the area under the eaves called?
Soffit: The underside of the eaves, or roof overhang, which can be enclosed or exposed. Soffit Vent: An intake vent in the soffit area of the house that provides attic venting at a lower portion of the roof deck and good circulation with other forms of venting such as ridge or roof vents; also called an intake vent.What is the difference between eaves and soffits?
The main difference between Soffit and Eaves is that the Soffit is a structure to fill the space between the ceiling and the top of cabinets mounted on the wall and Eaves is a edges of the roof which overhang the face of a wall.What part of the house is the fascia?
The fascia board is the one mounted at the point where the roof meets the outer walls of the house and is often called the ROOFLINE. However most people refer to it by the name of the main board that carries the gutter – the fascia or fascias.What are the ends of a roof called?
The sloped edge of a roof over a wall is the rake. The squared-off end of a sloped roof is called the “rake.” The ridge is the horizontal peak of the roof. The ridge is the peak where two sloped roof sections meet.How do you install drip edge?
Install roof drip edge along the eaves, add underlayment, then place drip edge along the gable end. The best way is to install the roof drip edge only along the eaves first, then place ice-and-water barrier (in the snowbelt) or felt paper (underlayment) over the drip edge.What does a roof drip edge look like?
Drip edges are metal sheets, usually shaped like an “L,” installed at the edge of the roof. Also called drip edge flashing or D-metal, they serve a vital function by directing water away from the fascia and into the gutter.Is fascia part of roof?
Roofing Parts-The Purpose of the Fascia & Soffit. Every part of your roofing structure has a lot to do with keeping your home dry and comfortable. Fascia, on the other hand, is a part that can easily be damaged. It is the parallel edge that is connected to the ends of the trusses or rafters.What's the difference between Truss and Rafter?
Trusses and rafters are both assembled ahead of being installed onto the roof. Trusses are assembled in a factory using pre-engineered structures and joints. On the other hand, rafters are assembled at the construction site. Rafters contain two main outer beams which support the roof structure.Is a hip or gable roof cheaper?
Hipped roofs are more expensive to frame than gable roofs. Get cost estimates on roofing from local contractors below. Hip roofs are more expensive to build than gable roof because it's a more complex design that requires more building materials including a complex system of trusses or rafters.Are hip roofs self supporting?
Hip roofs are not self supporting as believed years ago. The proof is all the old sagging ones we see. Those supports are needed, they just use the block to hide the joints above and help spread out the support post to all of the adjacent rafters.What's the difference between a hip roof and a gable roof?
A hip roof slopes on all sides, usually four, and results in a pyramidal shape. Hip roofs are commonly found in high wind and snow regions. They are very sturdy and come in a variety of styles. On the other hand, a gable roof slopes on two sides and connects to the specialized walls known as gables.Is a hip roof stronger?
A hip roof is self-bracing, requiring less diagonal bracing than a gable roof. Hip roofs are thus much more resistant to wind damage than gable roofs. Hip roofs have no large, flat, or slab-sided ends to catch wind and are inherently much more stable than gable roofs.
