What is full wave power supply?
Daniel Foster news

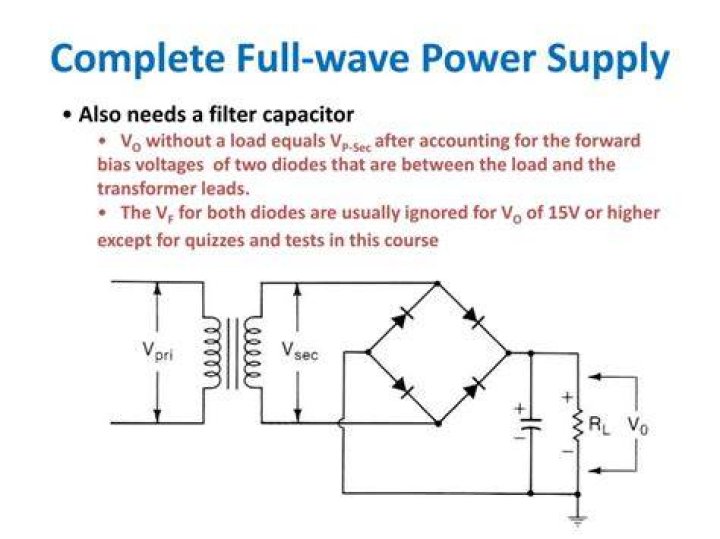

A full wave power supply refers to a power supply that is connected to an AC input that is connected to a rectification system that converts the entire positive and negative AC cycle to pulsating DC. Thus it is described as converting the full wave form of the AC signal to DC.
.
Herein, what is half wave power supply?
Half Wave Rectification. The power diode in a half wave rectifier circuit passes just one half of each complete sine wave of the AC supply in order to convert it into a DC supply. Then this type of circuit is called a “half-wave” rectifier because it passes only half of the incoming AC power supply as shown below.
Likewise, what is filtration in power supply? The filtering stage of a power supply circuit smoothes out the ripples in the rectified DC to produce a smooth direct current that's suitable for even the most sensitive of circuits. Filtering is usually accomplished by introducing a capacitor into the power supply circuit.
Similarly, you may ask, what is full wave rectifier?
A Full Wave Rectifier is a circuit, which converts an ac voltage into a pulsating dc voltage using both half cycles of the applied ac voltage. It uses two diodes of which one conducts during one half cycle while the other conducts during the other half cycle of the applied ac voltage.
How is AC converted to DC?
A rectifier is an electrical device that converts alternating current (AC), which periodically reverses direction, to direct current (DC), which flows in only one direction. The process is known as rectification, since it "straightens" the direction of current.
Related Question Answers
What are the types of power supply?
There are three major kinds of power supplies: unregulated (also called brute force), linear regulated, and switching. The fourth type of power supply circuit called the ripple-regulated, is a hybrid between the “brute force” and “switching” designs, and merits a subsection to itself.Why do we use 4 diodes in bridge rectifier?
The bridge rectifier consisting of four diodes enables full wave rectification without the need for a centre tapped transformer. The bridge rectifier is widely used to provide full wave rectification and it is possibly the most widely used circuit for this.What is ripple factor?
Ripple Factor is the ratio of rms value of ac component present in the rectified output to the average value of rectified output. It is a dimensionless quantity and denoted by γ. Its value is always less than unity.What is full wave rectifier with diagram?
Definition: Full wave rectifier is the semiconductor devices which convert complete cycle of AC into pulsating DC. Unlike half wave rectifiers which uses only half wave of the input AC cycle, full wave rectifiers utilize full wave.What do u mean by diode?
A diode is a specialized electronic component with two electrodes called the anode and the cathode. Most diodes are made with semiconductor materials such as silicon, germanium, or selenium. The fundamental property of a diode is its tendency to conduct electric current in only one direction.What is the function of voltage regulator?
A voltage regulator is used to regulate voltage levels. When a steady, reliable voltage is needed, then the voltage regulator is the preferred device. It generates a fixed output voltage that remains constant for any changes in an input voltage or load conditions.Why bridge rectifier is used?
A Bridge rectifier is an Alternating Current (AC) to Direct Current (DC) converter that rectifies mains AC input to DC output. Bridge Rectifiers are widely used in power supplies that provide necessary DC voltage for the electronic components or devices.What is RMS voltage?
RMS, or root mean square (also called effective), voltage is a method of denoting a voltage sine waveform (AC waveform) as an equivalent voltage which represents the DC voltage value that will produce the same heating effect, or power dissipation, in circuit, as this AC voltage.What are power diodes?
Power Diode is the two terminal(namely anode and cathode) two layer(P-N) device which is used in most of the power electronics circuits. The power semiconductor diode is similar to low power PN junction diode (signal diode). When the anode terminal is negative with respect to the cathode, it is known as reverse biased.What are the applications of rectifier?
Some Applications of Rectifier Diode- Rectifying a voltage, such as turning the AC into DC voltages.
- Isolating signals from a supply.
- Voltage Reference.
- Controlling the size of a signal.
- Mixing signals.
- Detection signals.
- Lighting systems.
- LASER diodes.
What does a diode do to AC voltage?
Diodes are used to rectify and clip AC signals. An AC generator produces a sinusoidal voltage (with zero DC offset) because of its rotation. You can use diode circuits to prevent this voltage from reversing polarity; this process is called rectification and is a step towards AC to DC conversion.Which transformer is used in full wave rectifier?
A center tapped full wave rectifier is a type of rectifier which uses a center tapped transformer and two diodes to convert the complete AC signal into DC signal. The center tapped full wave rectifier is made up of an AC source, a center tapped transformer, two diodes, and a load resistor.What is Zener diode?
The zener diode is a diode designed to operate in the breakdown region and have a specific negative voltage called the zener voltage. At this voltage, the diode will go into breakdown. This is a condition allowing current to flow while maintaining a constant voltage across the diode.How many diodes does a half wave rectifier have?
A single diode is required for a single-phase half-wave rectification and three diodes for a three-phase supply. Half wave rectifier produces more amount of ripple content than full-wave rectifiers and to eliminate the harmonics it requires much more filtering.Which diode is used in full wave rectifier?
The full wave rectifier circuit consists of two power diodes connected to a single load resistance (RL) with each diode taking it in turn to supply current to the load resistor. When point A of the transformer is positive with respect to point A, diode D1 conducts in the forward direction as indicated by the arrows.What is half wave?
The half wave rectifier is the circuit designed using the diode which is used for converting the AC voltage signal into the DC voltage. The half wave rectifier only passes the one half of the input sine wave (either positive or negative) and rejects the other half. The output of the half wave rectifier is pulsating DC.How many types of rectifier are there?
Majorly these are classified into two types they are single phase and three phase rectifier. Further rectifiers are classified into three types namely uncontrolled, half controlled and full controlled rectifiers. Let us see in brief about some of these types of rectifiers.What is the principle of full wave rectifier?
Principle of Full Wave Bridge RectifierDuring the positive half-cycle, the terminal 1 becomes positive, and terminal 2 becomes negative. This will cause the diodes A and C to become forward-biased, and the current will flow through it. Meanwhile diodes B and D will become reverse-biased and block current through them.Who Discovered full wave rectifier?
Karol Pollak
