String, stringer. A timber or other support for cross members in floors or ceilings. In stairs, the supporting member for stair treads. Usually a 2 X 12 inch plank notched to receive the treads..
Moreover, what is a stringer beam?
Girder is called stringer beam . The load may be a floor or roof in a building, in which case the beam is called a floor joist or a roof joist. In a bridge deck the lightly loaded longitudinal beams are the stringers; the heavier, transverse members are called floor beams.
Also, what is the difference between a joist and a stringer? A joist is a horizontal structural board that is used to span an open space. Stringers are beams that run lengthwise and also help transfer weight for more even distribution and are typically installed on top of the joists. Oftentimes, structural support beams like joists and stringers are exposed to high moisture.
People also ask, what is a stringer used for?
A fish stringer is a line of rope or chain along which a fisherman can string fish so they can be immersed and kept alive in water. A rope stringer (pictured) is the simplest type of fish stringer. It consists of a line of rope or wire with a stringing needle made of metal or hardwood at one end.
What is the stair stringer?

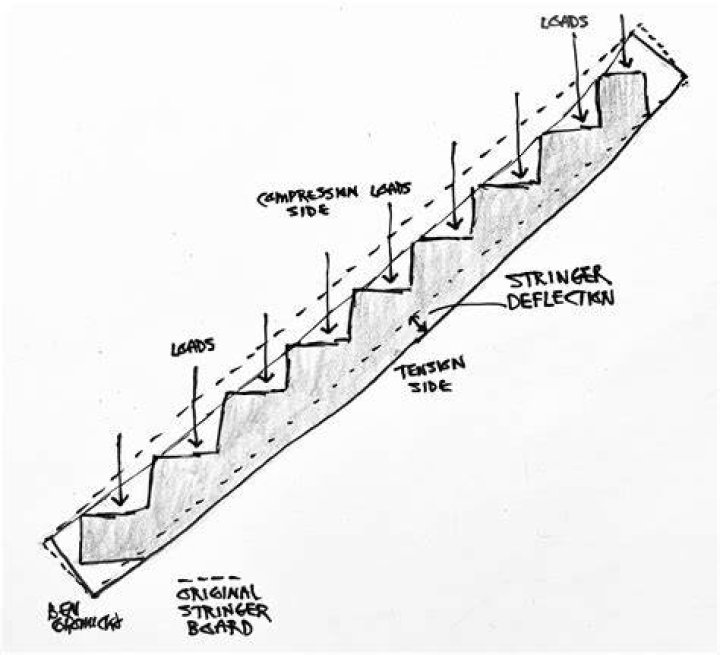

A stair stringer (also called 'string' or 'stringer board') is the housing on either side of a flight of stairs, into which the treads and risers are fixed. A staircase will have two stringers, one on either side of the steps.
Related Question Answers
What is difference between girder and beam?
Size of Element: - The main difference between a girder and a beam is the size of the component. Generally in construction industry large beams are referred as girders. If it is the chief horizontal support in a structure, it is a girder, not a beam. If it is one of the smaller structural supports, it is a beam.What is a spandrel beam?
In concrete or steel construction, an exterior beam extending from column to column usually carrying an exterior wall load is known as a spandrel beam. The spandrels over doorways in perpendicular work are generally richly decorated. At Magdalen College, Oxford, is one which is perforated.What is a stringer plate?
Definition of stringer plate. : one of the plates forming the outer strake of a ship's deck and being usually heavier than those used for the rest of the deck.What is Stringer in civil engineering?
stringer. [′striŋ·?r] (civil engineering) A long horizontal member used to support a floor or to connect uprights in a frame. An inclined member supporting the treads and risers of a staircase.What is the difference between Stringer and cross girder?
Stringer beams: These are secondary beams (typically used in truss bridges) to carry the load from the slab till the cross beams located at truss nodes. Cross girders: Typically these are the transverse beams (also very strong/stiff) which are provided for transverse stiffness.Where are plate girders used?
The plate girders are used to carry the loads beyond the capacity of universal beams. They consist of plates and angles riveted together. Plates and angles form an I-section. They are used in building construction and also in bridges.What is a stringer in carpentry?
Stringer. The main support for a staircase, which the risers and treads are attached to. T. Template. In carpentry terms a pattern made to speed up the process of marking numerous identical pieces to be cut such as rafters, stringers, studs, treads, risers, etc.What kind of wood should I use for stair stringers?
The stair stringers are essentially the backbone of your staircase. Always use straight, high-quality, pressure-treated 2x12s for stair stringers. If you are planning on resting the stringer on the ground, make sure the wood has . 60 RET level.How do you measure for stringers?
Measure out that distance from the deck to find the exact landing point. From this point, you can measure the exact stair height and determine the stringer and skirt length. Measure the exact total rise (Photo 1). Divide the height (X) by your estimated number of risers to find the exact riser height.Where do you put fish after you catch them?
Put the Fish on IceIcing fish is also the best way to store fish for transport. Use an insulated cooler and leave the cooler's drain plug open so ice water will run out. Water spoils the flavor of the fish.How do you determine a load bearing wall?
Generally, when the wall in question runs parallel to the floor joists above, it is not a load-bearing wall. But if the wall runs perpendicular (at a 90-degree angle) to the joists, there is a good chance that it is load-bearing. However, there are cases where a bearing wall is parallel to the joists.What does a ceiling joist look like?
A ceiling joist is a horizontal member that spans across your ceiling, used in framing to span an open space. These run between beams and transfer the load from your roof to the vertical members or studs. Steel joists have quite a variety of shapes, such as an 'I' or 'C' shape.What are girders made of?
A girder may be made of concrete or steel. Many shorter bridges, especially in rural areas where they may be exposed to water overtopping and corrosion, utilize concrete box girder . The term "girder" is typically used to refer to a steel beam.Where is a joist found?
A joist is a structural member that spans horizontally between the foundations of a building, or between walls or structural beams. In combination with other joists it provides support for a ceiling and/or floor.What is the difference between a beam and a joist?
A beam is the main load-bearing structural element of a roof. It supports the weight of joists and other building elements. A joist is a horizontal member that generally runs across a building and is supported by a beam. What's the difference between a beam and a joist?What are rafters and joists?
The main difference between Joist and Rafter is that the Joist is a horizontal structural element transferring load from flooring to beams, typically running perpendicular to beams and Rafter is a structural members in architecture.What is a stringer on a bridge?
Beam bridges, also known as stringer bridges, are the simplest structural forms for bridge spans supported by an abutment or pier at each end. The main beams could be I-beams (also known as H-beams), trusses, or box girders. They could be half-through, or braced across the top to create a through bridge.What is a joist header?
In the framing of a deck or floor system, a rim joist is attached perpendicular to the joists, and provides lateral support for the ends of the joists while capping off the end of the floor or deck system. It is also confusingly called a header (header also refers to other framing components) or rim board.What are floor joists attached to?
Joists run from one beam to another and are usually spaced 16 inches apart, center-to-center. Plywood sheathing attaches to the joists, then hardwood flooring or tile. Since joists carry the load of the floor, they must be securely attached at either end to a ledger board or a beam, and must be level in all planes.
