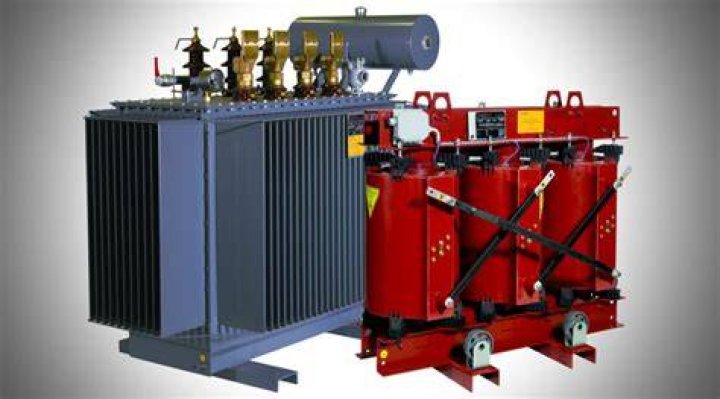

What is a medium voltage transformer?
Andrew Ramirez .
Also to know is, what is medium voltage?
In general, medium voltage is a term used by the electrical power distribution industry. Here are a few ways medium voltage is defined: ANSI/IEEE 1585-2002 refers to: Medium Voltage (1 - 35 kV). Technically speaking, “medium voltage” fuses are those intended for the voltage range from 2,400 to 38,000 VAC."
Similarly, what are the standard sizes of transformers? The most common building industry standard ratings are 3, 6, 9, 15, 30, 37.5, 45, 75, 112.5, 150, 225, 300, 500, 750, and 1,000 kVA.
Similarly, it is asked, what is LV MV and HV?
Answered Mar 7, 2019. The (widely) accepted international recognition of the voltage classes you mention are as follows: HV are voltages between 69kV and 230kV. MV are voltages between 1kV and 69kV. LV is a voltage below 1kV. These are largely arbitrary and the standards will vary depending who you speak to.
What is a transformer used for?
A: A transformer is used to bring voltage up or down in an AC electrical circuit. A transformer can be used to convert AC power to DC power. There are transformers all over every house, they are inside the black plastic case which you plug into the wall to recharge your cell phone or other devices.
Related Question Answers
Where is medium voltage used?
Medium-voltage cables are commonly used in mobile substation equipment, for distribution of power in industrial settings and in mining to supply power to drills, shovels, haulers, etc., said David Sedivy, Senior Product Manager at TPC Wire & Cable Corp.What are the voltage levels?
The voltage range between 36 kV and 150 kV is referred to as the high-voltage level. The voltage range between 1 kV and 36 kV is referred to as the medium-voltage level. Any voltage below 1 kV is referred to as the low-voltage level. This is the voltage at which the electricity reaches the power sockets of households.What is the voltage range for medium voltage?
The limits are clearly defined, however, in the IEC 60038 standard: low voltage is up to 1000 V, medium voltage is from 1000 V to 35 kV, and high voltage is over 35 kV.What voltage is low voltage?
Low voltage is defined as 50 volts (V) or less.Is 4160 medium voltage?
1 standard defines low voltage as 240 to 600 VAC, while medium voltage is typically 2300 or 4160 VAC (3300 or 6600 VAC in Europe and most of the rest of the world), but it can be as high as 69,000 VAC. High voltage, according to ANSI C84. 1, is 115,000 to 230,000 VAC.What is mV voltage?
The voltage V in millivolts (mV) is equal to the voltage V in volts (V) times 1000: V(mV) = V(V) × 1000.What is a medium voltage drive?
Medium-voltage drives, operating from higher electric supply, bring 'heavy lifting' capability and further economies of scale to rugged applications. For motor drives, the range above 600 V to 15 kV represents some consensus; Europe regards 1 kV as the MV threshold.What is the difference between low voltage and medium voltage?
Low Voltage (LV) is 120V and under. Medium Voltage (MV) is 240V to 360V. High Voltage (HV) is anything above 600V.What does MV mean in voltage?
MV, the abbreviation for megavolt, or 1,000,000 volts, a measure of electrical potential. Mendelevium, a chemical element with former symbol Mv. mV, millivolt: 1/1,000 of a volt, a measure of electrical potential. mv, abbreviation for momentum in physics.What is LV switchgear MV?
The term LV Switchgear includes low voltage circuit breakers, switches, off load electrical isolators, HRC fuses, earth leakage circuit breaker, miniature circuit breakers (MCB) and molded case circuit breakers (MCCB) etc i.e. all the accessories required to protect the LV system.What is Extra High Voltage?
As per present terminology, voltages less than 300 kV are termed as High Voltages. The voltages in the range of 300 kV to 765 kV are known as Extra High Voltages (EHV). Electrical energy is generated at a voltage of about 11 kV. Then it is stepped up to 132, 220 or 400 kV for transmission.What is an HV?
hv means "have"What is LT voltage?
LT stands for Low Tension and HV stands for High Voltage. Upvote (0) Answer added by saif shah, Sr.Testing & Commissioning Engineer , Siemens Pakistan Engineering Co.Ltd. LT (low tension/or low voltage) having below 1KV i.e 220/440v etc.. HT(high transmission/high voltage) having 33kv up to 220kv.How do I choose a transformer size?
Video of the DayA 120-volt motor has a load amperage of 5 amps. Multiply 120 volts times 5 amps this equals 600VA now lets multiply the 125 percent start factor. Take 600 times 1.25 this equals 720VA and most transformers are sized by a factor of 25VA or 50VA. The required transformer would be a 750VA or .How do I choose the right size transformer?
Before Selecting a dry-type Transformer- Determine is it three phase or single phase.
- Determine power line voltage and frequency it will be primary voltage for your transformer.
- Determine voltage for your application it will be secondary voltage of the transformer.
- To determine the capacity required in volt-amperes.
How do I know what size transformer I need?
To determine the size of the transformer you need, use this handy formula, or refer to the Technical Reference Section.- Determine the Load Voltage.
- Load Voltage = ______________________
- Determine the Load Current (Amps)
- Load Current/Amps = __________________
- Determine the Line Voltage.
What is meant by kVA?
Kilovolt-amp (kVA)kVA is kilo-volt-ampere. kVA is a unit of apparent power, which is electrical power unit. 1 kilo-volt-ampere is equal to 1000 volt-ampere: 1kVA = 1000VA.Are transformers continuous loads?
As the connected load is considered to be continuous, a standard 80% rated circuit breaker is selected on the transformer primary. The setting of the O/C for this circuit breaker shall not exceed 125% of the transformer rated primary current.Who is the tallest transformer?
