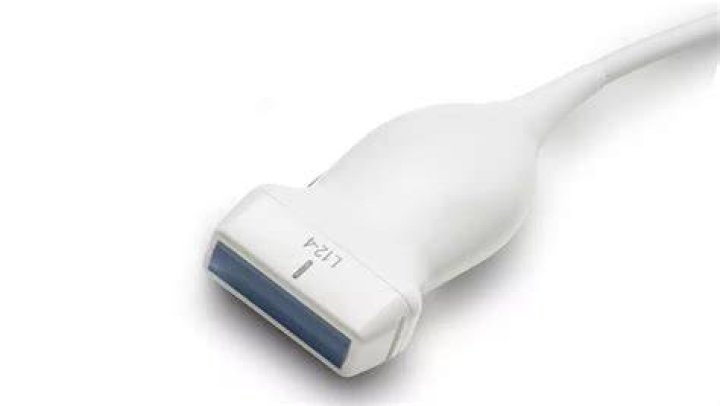

Ultrasound transducers that produce images via linear array typically contain 256-512 elements, making them the largest assembly. Linear transducers produce a rectangular field of view with uniform beam density throughout. They are useful for imaging shallow structures and small parts..
Similarly, what is a transducer array?
Ultrasound transducers are assembled in an array (an array is the group of piezoelectric crystals within the transducer housing). The array is created by slicing a large piezoelectric crystal into many smaller active elements. Each element is unique.
Also, how many elements are in a linear phased array transducer? Rectangular, 1/4 to 1/2 wavelength wide. There are approximately 100 to 200 elements, each with width of one quarter to half wavelength.
Subsequently, one may also ask, what are the different types of ultrasound transducers?
Below we list the three most common ultrasound transducer types – linear, convex (standard or micro-convex), and phased array.
What is a linear ultrasound probe?
A linear probe uses high frequency ultrasound to create high resolution images of structures near the body surface. This makes the probe ideal for vascular imaging and certain procedures such as central line placement.
Related Question Answers
How does a phased array work?
In a phased array, the power from the transmitter is fed to the antennas through devices called phase shifters, controlled by a computer system, which can alter the phase electronically, thus steering the beam of radio waves to a different direction.What is phased array inspection?
Phased array ultrasonics (PA) is an advanced method of ultrasonic testing that has applications in medical imaging and industrial nondestructive testing. Common applications are to noninvasively examine the heart or to find flaws in manufactured materials such as welds.What is gain on ultrasound?
Gain is a uniform amplification of the ultrasonic signal that is returning to the transducer after it travels through the tissue. So rather than brightening the monitor, the image on the screen is whitened by a uniform margin, as though the returning signal is stronger than it is, to make it easier to see.What are the different types of probes?
There are three basic types of probe used in emergency and critical care point-of-care ultrasound: linear, curvilinear, and phased array. Linear (also sometimes called vascular) probes are generally high frequency, better for imaging superficial structures and vessels, and are also often called a vascular probe.How many types of probes are there?
There are four basic types of probes used: - Linear probes – are generally high frequency better for imaging superficial structures & vessels also called vascular probes.
- Curvilinear probes – have widened footprint and lower frequency for transabdominal imaging & widen the field of view.
What are 3 uses of ultrasound?
Ultrasound is a useful way of examining many of the body's internal organs, including but not limited to the: - heart and blood vessels, including the abdominal aorta and its major branches.
- liver.
- gallbladder.
- spleen.
- pancreas.
- kidneys.
- bladder.
- uterus, ovaries, and unborn child (fetus) in pregnant patients.
What do you mean by transducer?
A transducer is a device that converts energy from one form to another. Usually a transducer converts a signal in one form of energy to a signal in another. The process of converting one form of energy to another is known as transduction.How many MHz is an ultrasound?
Ultrasound frequencies in diagnostic radiology range from 2 MHz to approximately 15 MHz.How are ultrasound waves produced?
In most applications, ultrasonic waves are generated by a transducer that includes a piezoelectric crystal that converts electrical energy (electric current) to mechanical energy (sound waves). Ultrasound may also be produced by a whistle or siren-type generator.How big is a transducer?
The transducer is basically a wand that goes inside your vagina to do the ultrasound. It's just a few centimeters wide (with the tip being wider than the rest) and about 12 inches long, Dr.What is an ultrasound probe used for?
A device that produces sound waves that bounce off body tissues and make echoes. The transducer also receives the echoes and sends them to a computer that uses them to create a picture called a sonogram. Transducers (probes) come in different shapes and sizes for use in making pictures of different parts of the body.What is convex probe?
convex array ultrasound probe. Because of its smaller convex contact surface, the curvilinear or convex sector-array fits much better on the abdomen and allows for a wider field of view than does the linear-array configuration.What determines lateral resolution?
By way of contrast, lateral resolution is defined as the ability of the system to distinguish two points in the direction perpendicular to the direction of the ultrasound beam. It is also known as azimuthal resolution. Lateral resolution is affected by the width of the beam and the depth of imaging.What is a phased array ultrasound transducer?
A phased array transducer is an arrangement of transducer elements properly excited that allow the shaping and control of the ultrasonic beam in a specific manner.What is a curvilinear probe?
In echocardiography we use curvilinear probes. These have a small footprint (surface from which the ultrasound rays are emitted). Curvilinear probes emit the ultrasound beams in the form of a wave front. The ultrasound crystals emit a beam which has a certain width (beam width).How much is an ultrasound probe?
This would make a 20 transducer ultrasound still cost north of $200, and to make something more interesting like this 40x40 PZT array for 3D imaging would cost about $19,200 for just the transducer array.What is a probe in medical terms?
Medical Definition of ProbeProbe: 1: In surgery, a probe is a slender flexible rod with a blunt end used to explore, for example, an opening to see where it goes. 2: In molecular genetics, a probe is a labeled bit of DNA or RNA used to find its complementary sequence or locate a particular clone.How does a transducer work in ultrasound?
An ultrasound transducer is the handheld device that the technician or doctor moves on or over the body of the patient. A cord connects it to a computer. The device sends sound waves and receives the echoes as they bounce off the body tissue and organs of the patient.What is a mode ultrasound?
A-mode: A-mode is the simplest type of ultrasound. A single transducer scans a line through the body with the echoes plotted on screen as a function of depth. Therapeutic ultrasound aimed at a specific tumor or calculus is also A-mode, to allow for pinpoint accurate focus of the destructive wave energy.
