How does a motor generator set work?

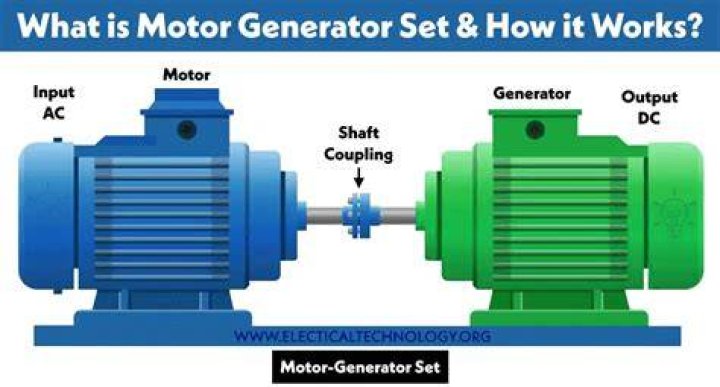

As the name implies, a motor-generator set utilizes an electric motor as the prime mover to drive a generator. In all cases, the motor requires a source of three-phase power and it runs on electrical input current while it drives the generator to produce the required single-phase or three-phase electrical output power.

Keeping this in consideration, how does a motor generator work?

A generator converts mechanical energy into electrical energy, while a motor does the opposite - it converts electrical energy into mechanical energy. Both devices work because of electromagnetic induction, which is when a voltage is induced by a changing magnetic field.

One may also ask, what is the principle of motor and generator? Motors convert electric energy to mechanical work. The opposite is done by generators that convert mechanical work to electrical energy. Principle of Generators: When a conductor moves in a magnetic field, an emf is induced across the conductor.

Similarly one may ask, how does a motor generate electricity?

An electric motor is an electrical machine that converts electrical energy into mechanical energy. Most electric motors operate through the interaction between the motor's magnetic field and electric current in a wire winding to generate force in the form of rotation of a shaft.

Which motor is best for generate electricity?

If it is a small power experiment, a stepper motor generates good power at lower rpm (revolutions per minute). Stepper motors can be obtained from old broken printers and scanners. This is one instructable that makes a light glow with stepper motor generator. The DC motor is best suited for a generator.

Which motor is used in motor generator set?

Motor-generator setsThey consist of a (3-phase) motor, directly coupled to a DC generator. As the motor speed depends mainly on the mains frequency, these units are relatively insensitive to variations in the supply voltage. They can be remotely controlled by varying the excitation current.

Can we convert motor to generator?

YES! However, they will likely be inefficient in the other direction. Motors are designed to efficiently take electrical power and convert it into mechanical motion, while generators(alternators) are designed to efficiently convert mechanical motion into electrical power.

What is the difference between motor and generator?

The Motor converts electric energy into mechanical energy, whereas generator does the opposite. The Shaft of the motor is driven by the magnetic force developed between armature and field windings whereas, in the case of the Generator the Shaft is attached to the rotor and is driven by mechanical force.

What is the difference between induction motor and generator?

An induction generator looks a lot like an induction motor used in industry and it is, the difference is when the machine is rotated faster than its normal operating speed, an induction generator produces AC electricity.

How is power calculated?

Power is work or energy divided by time, so power has the units of joules/second, which is called the watt — a familiar term for just about anybody who uses anything electrical. You abbreviate a watt as simply W, so a 100-watt light bulb converts 100 joules of electrical energy into light and heat every second.

What is the difference between a DC motor and a DC generator?

A DC motor converts electrical energy into direct power output while a DC generator converts mechanical energy into direct electric power. DC motor uses the left-hand rule of Fleming while DC generator uses the right-hand rule of Fleming.

How does a simple generator work?

Basic electrical generators convert motion into electricity the same way we convert our clapping motion into sound waves. To make electrical energy, the generator needs a magnetic field and a moving wire to come together. The movement of the wire through the magnetic field is mechanical energy.

Why can't a generator power itself?

A generator cannot produce enough power to run itself and feed electricity to outside sources due to the inherent percentage of power loss associated with any power generation system.

How many types of motor are there?

the two types of motor. Ac motor and Dc motor. AC motors are synchronous motor and induction motor. two types of induction motor are single phase and three phase.

Is a dynamo AC or DC?

Dynamo - a device that makes direct current electric power using electromagnetism. It is also known as a generator, however the term generator normally refers to an "alternator" which creates alternating current power.

Can an electric motor be turned into a generator?

Yes, you can use your motor as generator. Working of electric motor:-When electricity is passed through a coil in a magnetic field then the magnetic force produces a torque which turns the motor. In small DC Motors permanent magnets are used to create the magnetic field.so,you can use it as a generator.

What are the parts of a electric motor?

Electric motor designs can vary quite a lot, though in general they have three main parts: a rotor, a stator and a commutator. These three parts use the attractive and repulsive forces of electromagnetism, causing the motor to spin continually as long as it receives a steady flow of electric current.

Can a generator be used as a motor?

In general, yes, just as a motor can be used as a generator, as long as you have a way of exciting the magnetic field in which the stator rotates. A motor–generator, which is an old-school power conditioner, frequency converter, and depending on the mass of the flywheel, a quasi-UPS.

What is the principle of electric motor?

Electric motor: A motor is a device which converts electrical energy into mechanical energy. Principle of motor : A motor works on the principle that when a rectangular coil is placed in a magnetic field and current is passed through it. A force acts on the coil which rotates it continuously.

What are the types of generator?

Types of Generators. There are three main types of generators: portable, inverter and standby. Despite their differences, all of these generators should undergo similar generator maintenance to ensure long-term use.

How current is produced in generator?

Generators don't actually create electricity. Instead, they convert mechanical or chemical energy into electrical energy. They do this by capturing the power of motion and turning it into electrical energy by forcing electrons from the external source through an electrical circuit.

What is the working principle of Dynamo?

A generator or a dynamo is a device which converts mechanical energy to electrical energy. The generator was originally designed by Nikola Tesla. Principle : Generator works on the principle of electromagnetic induction. Whenever the magnetic field linked with a coil changes , an induced emf is setup in coil.

How many rpm does it take to generate electricity?

To produce 60 Hz electricity, most engines operate at 1800 or 3600 RPM.

Are wind turbines DC or AC?

The generator in a wind turbine produces alternating current (AC) electricity. Some turbines drive an AC/AC converter—which converts the AC to direct current (DC) with a rectifier and then back to AC with an inverter—in order to match the frequency and phase of the grid. This leads to a more stable power system.
